CI2701 Logic Control Board--Tianjin Bernard

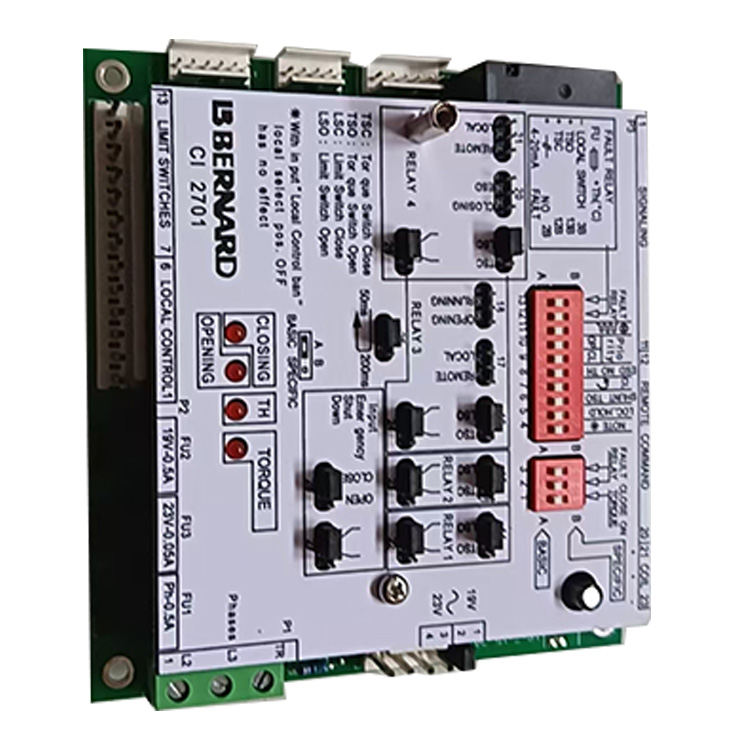

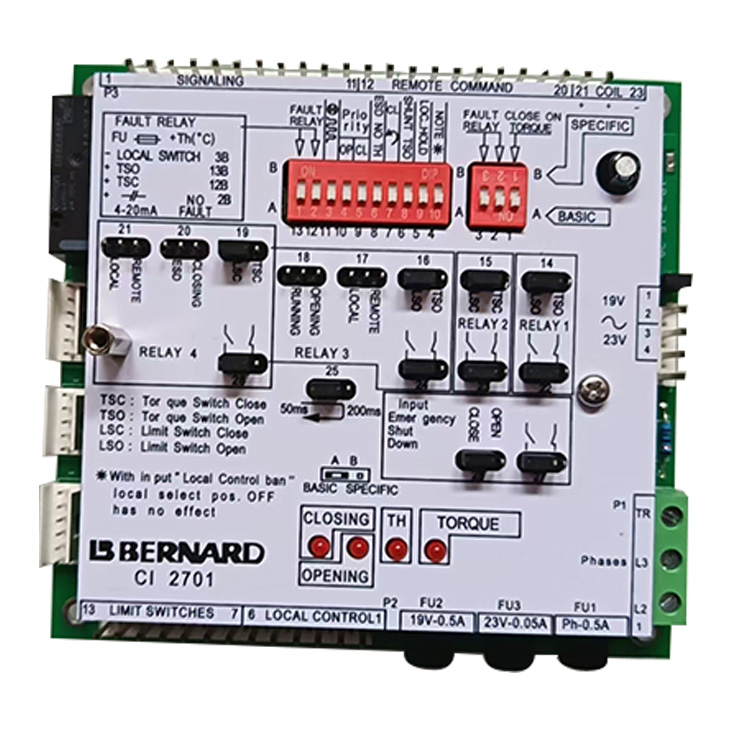

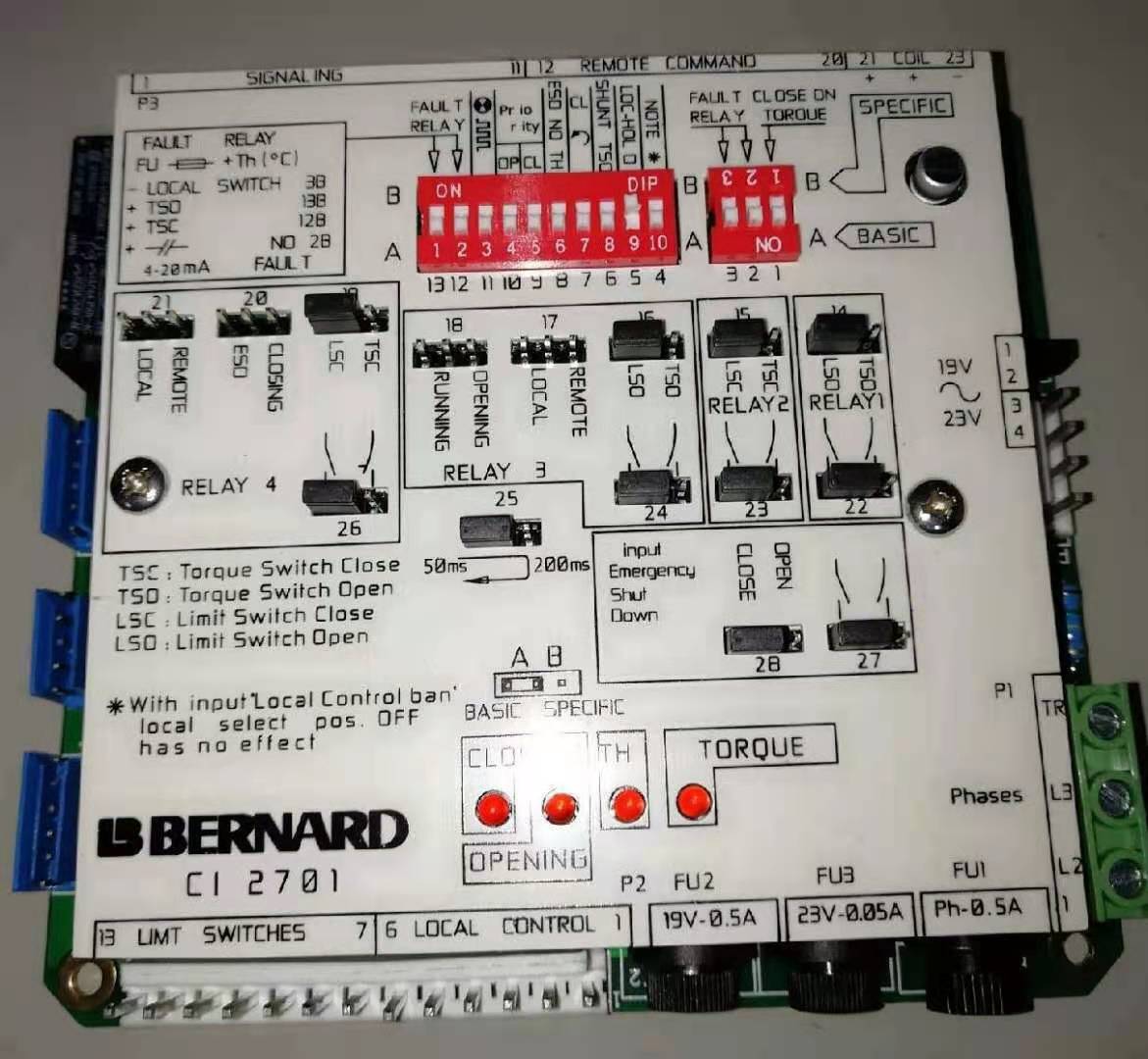

BERNARD electric actuators can be configured into different control systems depending on the application. Common circuit boards include logic control boards, position control boards, and local manual operators. Special applications include fieldbus control boards, timer control boards, and digital display boards. Currently, the main model of the logic control board is CI2701, also known as the 2701 board, which consists of main circuit boards such as INTEGRAL and POSIGAM. BERNARD electric actuators can be configured into different control systems depending on the application.1. 001 Press the “+” key to restore the smart board to factory parameters. Press the “5^1” key to change/retrieve values and enter the next-level setting state.2. 101 Press the “+” key to set this position as the feedback signal 0% (4^) position. Press the “1” key to change the last digit.102 Press the “+” key to set the position to the feedback signal 90° (20^) position. Press the “50:” key to enter the next level.3. 201 Press the “+” key to set this position as the manual timeout limit position. Press the “1” key to change the last digit.202 Press the “+” key to set this position as the open limit in manual mode. Press the “5^1” key to enter the next level.Note: Press the “+” key for the above items to save the current settings, or not to save. The following items will save the setting parameters upon exit.
