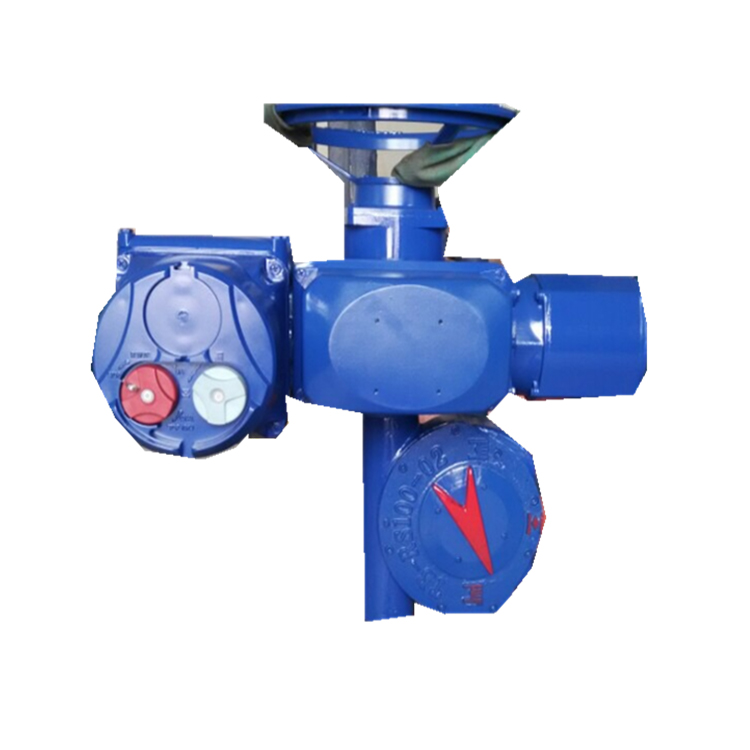

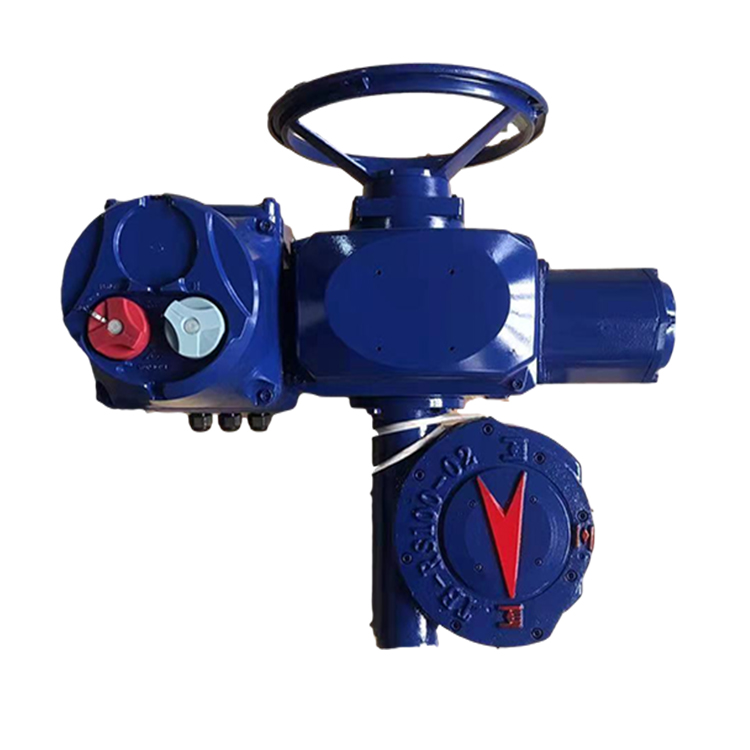

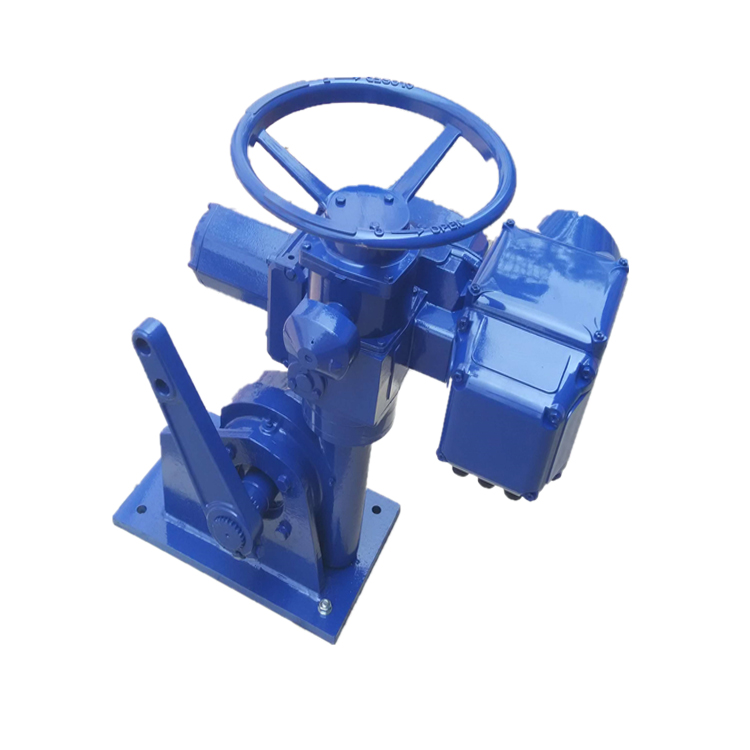

AS100 Bernard Electric Actuator - Tianjin Bernard

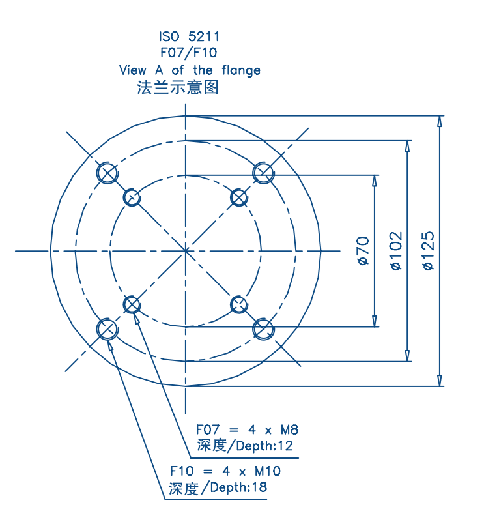

AS100 Bernard Electric ActuatorIn terms of performance, the electric actuator integrates the practical functions and technical parameters of various electric actuators. Users can freely configure and select according to system requirements. The setup process includes a complete human-machine interface, with all fields displayed on-site. In terms of hardware, it can be configured into various control modes and action modes, such as regulation control mode and switch control mode. Data modification, sending, and reading back operations are simple and convenient. The functions are comprehensive, including various parameter settings, function configuration, and operation.Optional features:1. Voltage options: 110V, 220V, 380V, 400V, 460V2. Two connection types available: base-mounted and direct-coupled3. Types available: quick switch, standard switch, and regulation type4. Connection flanges can be customized according to user requirementsProtection Features:1. Motor Overload ProtectionThe control system immediately stops motor rotation when the actuator motor is stalled during operation. This function protects both the valve and the actuator itself.2. Valve Position Limit ProtectionThe actuator automatically stops when it reaches the closed or open limit positions.3. Instant Reverse ProtectionWhen the actuator receives a reverse movement command, a time delay is automatically added to prevent unnecessary wear on the valve stem and gearbox.4. Electrical Isolation ProtectionThe input and output channels of the actuator are optically isolated from the external environment, ensuring reliable operation of the actuator and protection from interference.
