B+RS600/F105H
Details

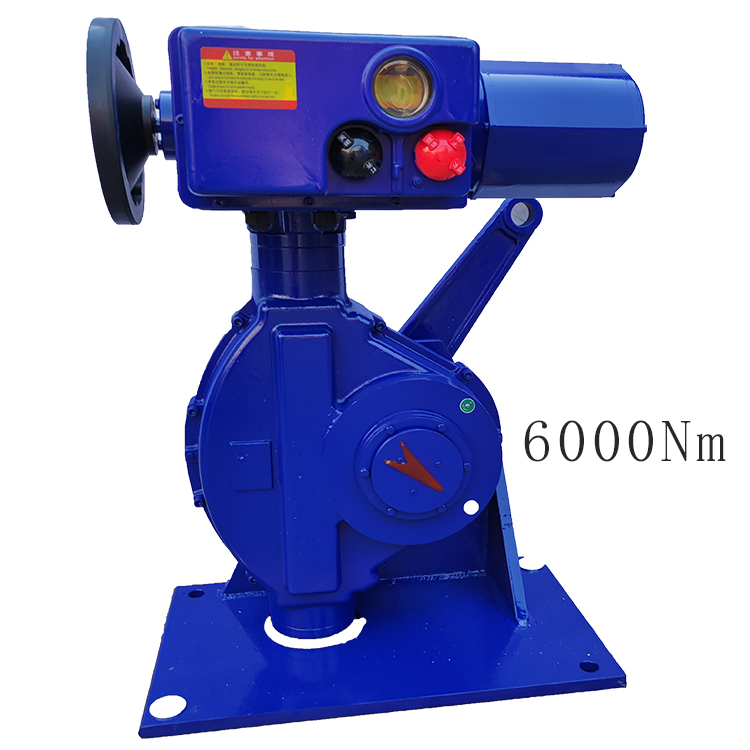

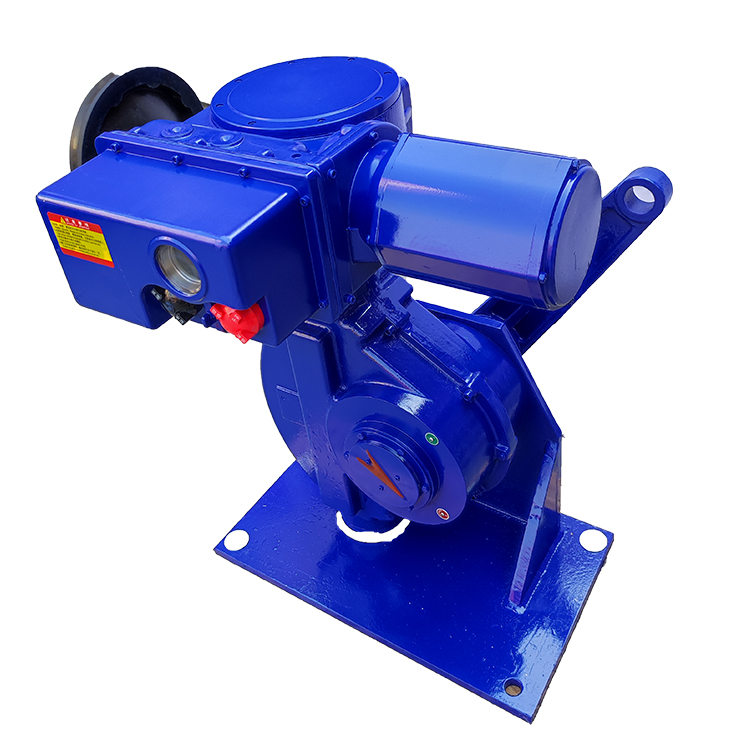

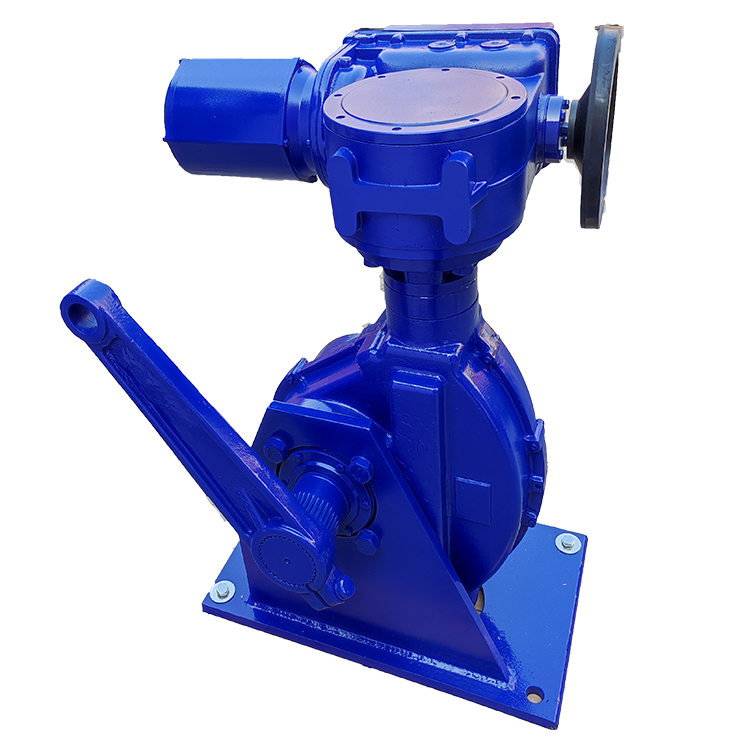

Intelligent Electric Actuator B+RS600/F105H
Model：B+RS600/F105H
Torque：6000 NM
Input signal：4-20mA
Output signal：4-20mA
Voltage：220V 380V
Time:105sControl method：Manual (handwheel)/local electric manual operation/automatic (analog control)
Product
Features: Base-mountedWhen the actuator control signal is lost, the operating
status of the actuator can be preset (maintain the current position, open
position, closed position, or any position between 0-90 degrees).This device
has automatic detection, recovery, and alarm functions: for example, if the
actuator motor stalls, it can automatically enter a protection state and output
an alarm contact signal, with a local flashing screen alarm.
|
odel |
Torque（Nm) |
Time(S) |
Flange Installation |
Base Installation |
Motor Parrameters |
|
|
ISO standard |
type |
Voltage |
Power KW |
|||
|
AS-25/K30H |
250 |
30 |
F10 |
SQJ-25 |
K;F |
0.065 |
|
A+RS100/30H |
1000 |
30 |
F12 |
SQJ-100 |
K:F |
0.16 |
|
BS-60/K30H |
600 |
30 |
F14 |
SQJ-60 |
K:F |
0.16 |
|
B+RS160 |
1600 |
40 |
F14 |
SQJ-160 |
K:F |
0.4 |
|
B+RS250 |
2500 |
40 |
F16 |
SQJ-250 |
K;F |
0.4 |
|
B+RS400 |
4000 |
65 |
F16 |
SQJ-400 |
K;F |
0.4 |
|
B+RS600 |
6000 |
105 |
F16 |
SQJ-600 |
K:F |
0.4 |
|
B+RS800 |
8000 |
105 |
F16 |
SQJ-800 |
F |
1 |
|
B+RS1000 |
10000 |
125 |
SQJ-1000 |
F |
1 |
|
|
B+RS1200-1600 |
12000-16000 |
150 |
SQJ-1200 |
F |
1.5 |
|
